Tutorial link: YDLIDAR Lidar 4ROS
Product Introduction

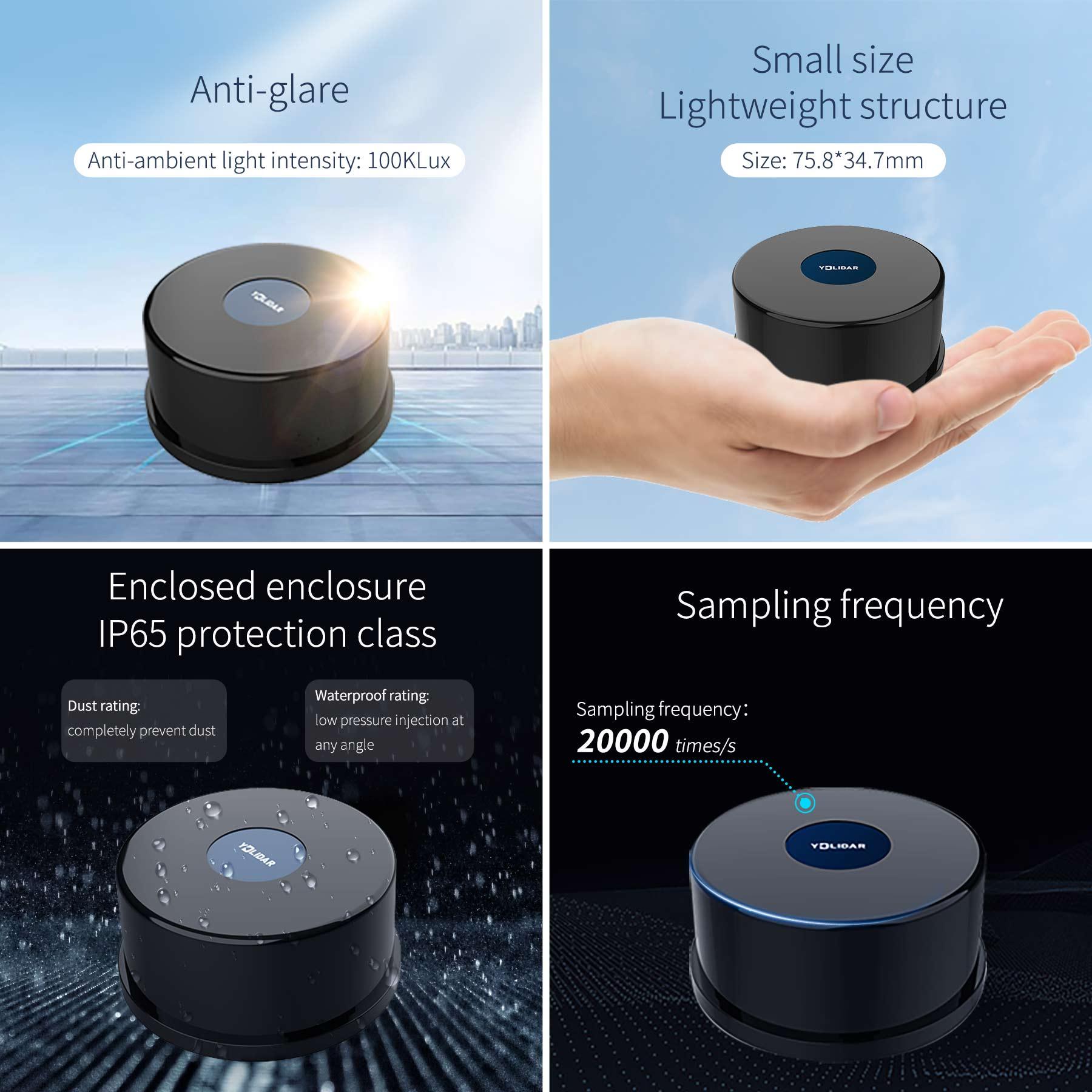

This YDLIDRA 4ROS lidar is only 7.58cm*3.47cm in size. It comes with a motor driver with speed regulation function inside, and IP65-rated closed protective cover on the outside, which is waterproof and dustproof. Using TOF technology, sampling frequency is 20000 times/S, scanning radius can reach about 30m. Due to it can resist the strong light environment of 100KLux, users can use it to achieve high-precision ranging and mapping no matter indoors or outdoors. We will provide open source codes for ROS1/ROS system and robot lidar mapping scanning.
Features
1）Small size, height is 3.47cm.

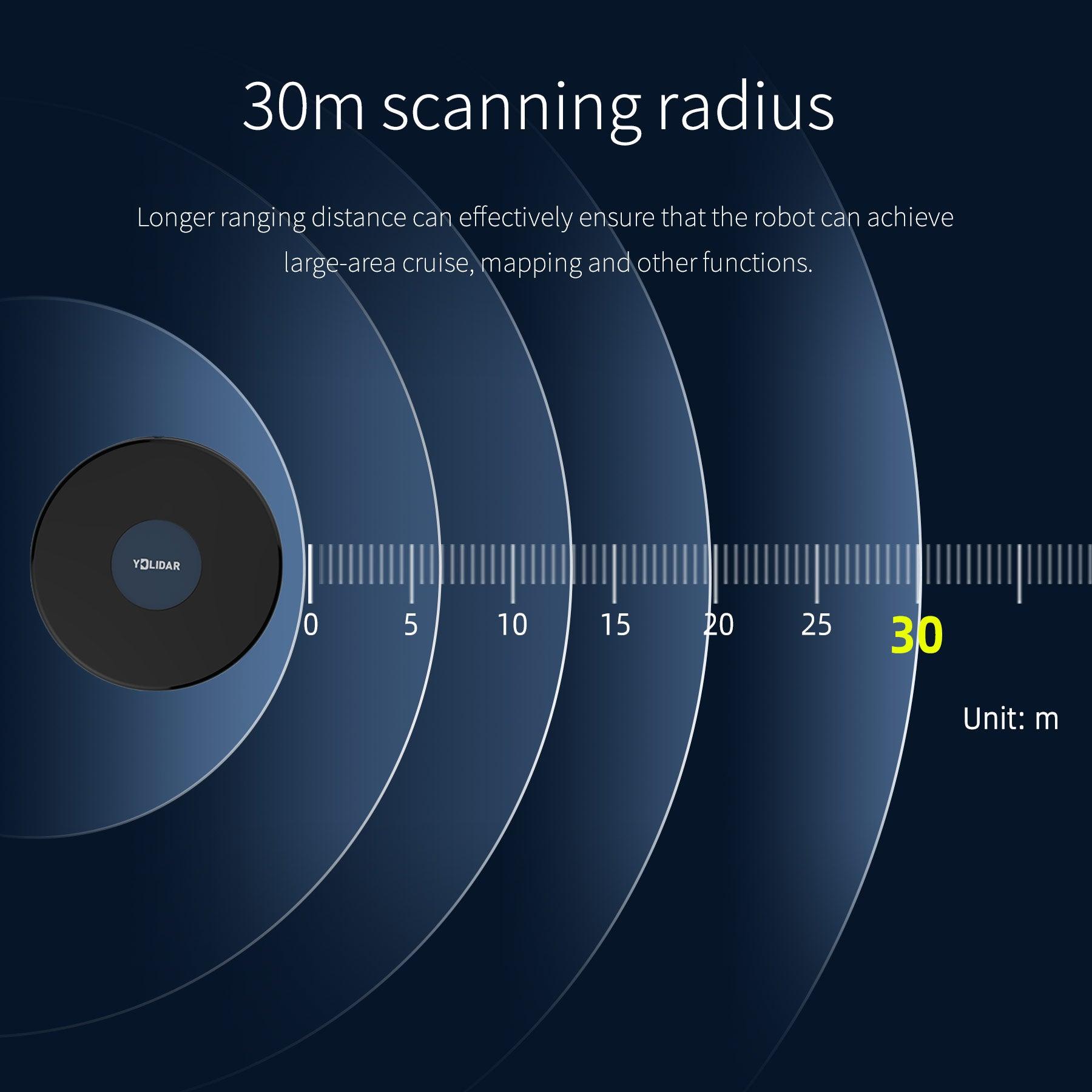

2）Top technology, sampling frequency 20000 times/S, scanning is 30M.
3）IP65-rated enclosed protective cover, waterproof and dustproof.
4）Can resist the strong light environment of 100KLux and can be used indoors and outdoors.
5）ROS1/ROS2 open source code package is provided for free.
YDLIDAR Lidar 4ROS TOF 30M Range Anti-glare 100KLux support ROS ROS2 Raspberry Pi Jetson indoor outdoor
Vendor: Yahboom
SKU: 6000301259
Need help with choosing the right product?
Click here to reach out to one of our experts.
Tutorial link: YDLIDAR Lidar 4ROS
Product Introduction
This YDLIDRA 4ROS lidar is only 7.58cm*3.47cm in size. It comes with a motor driver with speed regulation function inside, and IP65-rated closed protective cover on the outside, which is waterproof and dustproof. Using TOF technology, sampling frequency is 20000 times/S, scanning radius can reach about 30m. Due to it can resist the strong light environment of 100KLux, users can use it to achieve high-precision ranging and mapping no matter indoors or outdoors. We will provide open source codes for ROS1/ROS system and robot lidar mapping scanning.
Features
1）Small size, height is 3.47cm.
2）Top technology, sampling frequency 20000 times/S, scanning is 30M.
3）IP65-rated enclosed protective cover, waterproof and dustproof.
4）Can resist the strong light environment of 100KLux and can be used indoors and outdoors.
5）ROS1/ROS2 open source code package is provided for free.
