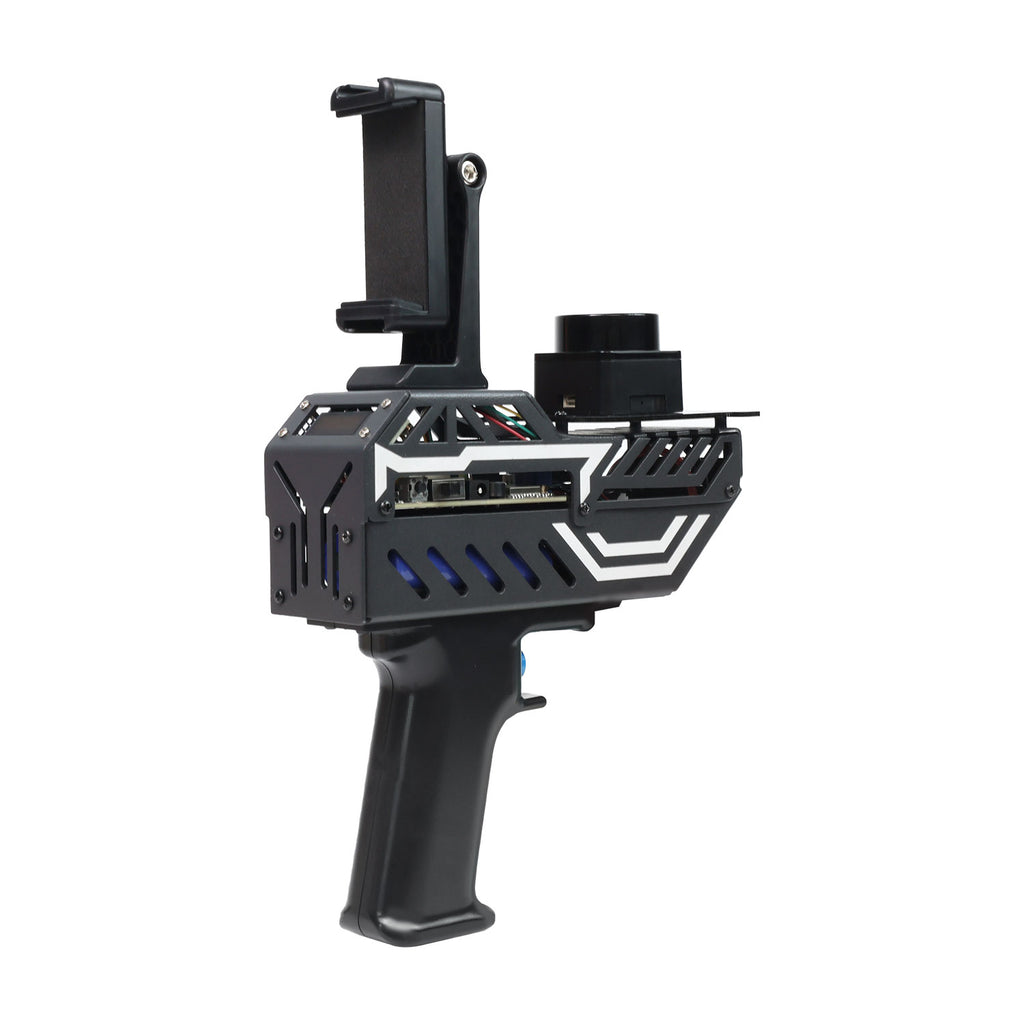

PALMSLAM Handheld LiDAR Scanner

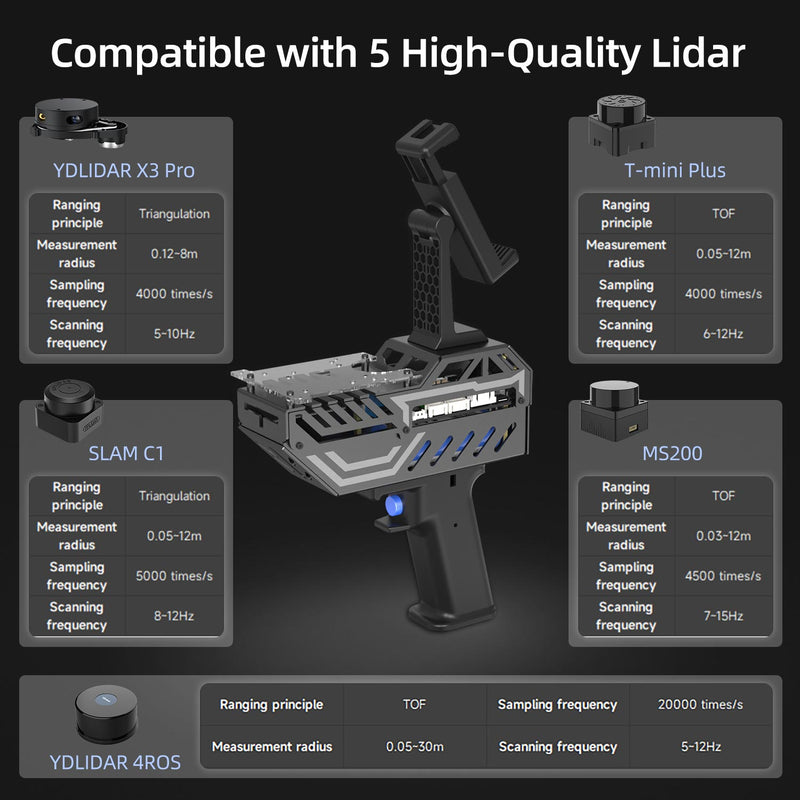

PALMSLAM is a handheld lidar mapping scanner device that is compatible with 5 common lidars: EAI X3 Pro, EAI T-mini plus, SLAM C1, Oradar MS200, EAI 4ROS. These 5 lidars have different prices and performances. Users can choose the lidar configuration that suits them according to their own usage environment or project requirements. PALMSLAM comes with a expansion board that integrates an ESP32 processor and a 6-axis IMU sensor. The lidar data is transmitted to the host device through microROS wireless communication technology to view the mapping effect in real time. 6-axis IMU monitors the holding posture in real time to ensure that PALMSLAM remains horizontal during mapping and obtains more accurate data. Compared with traditional mapping on computer or vehicle-mounted lidar mapping solutions, PALMSLAM is more flexible, portable, and easy to operate. It is an ideal choice for fast and accurate mapping.
Features

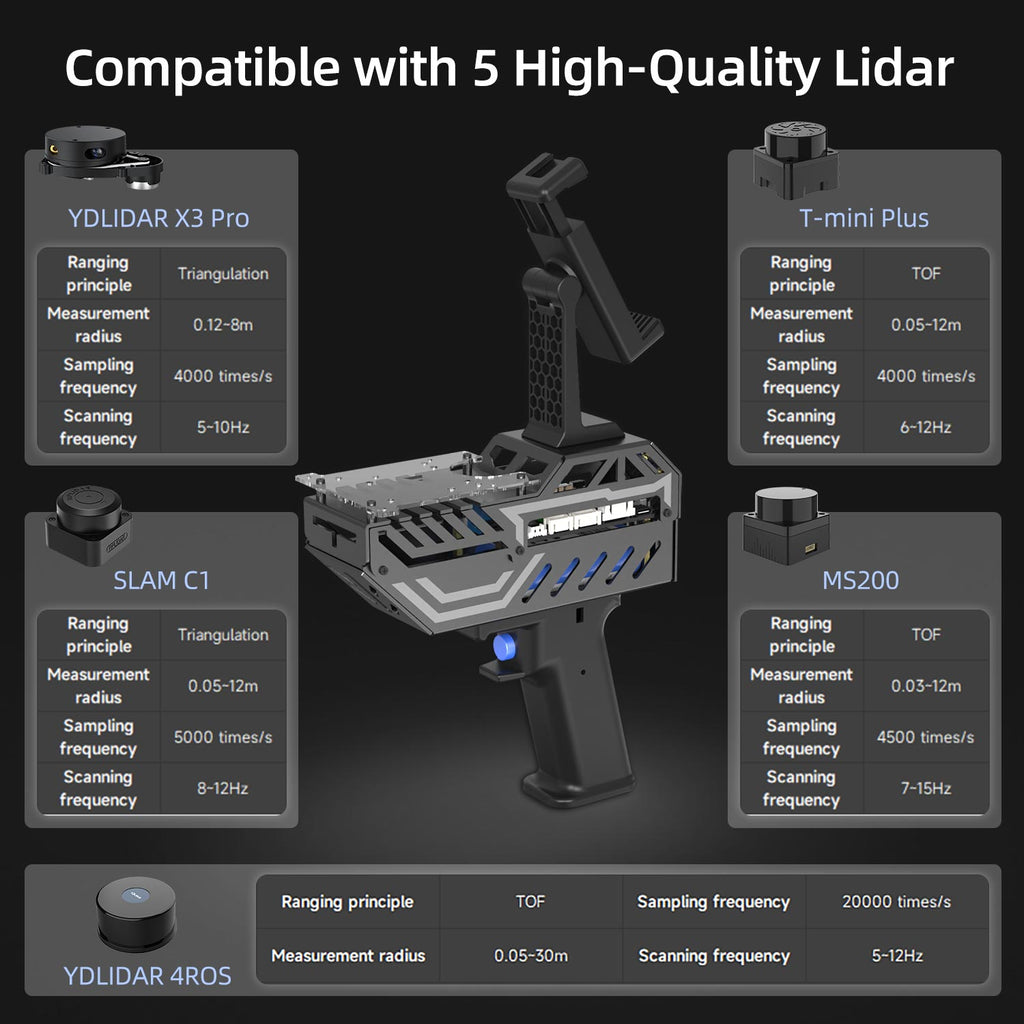

Compatible with five lidars:

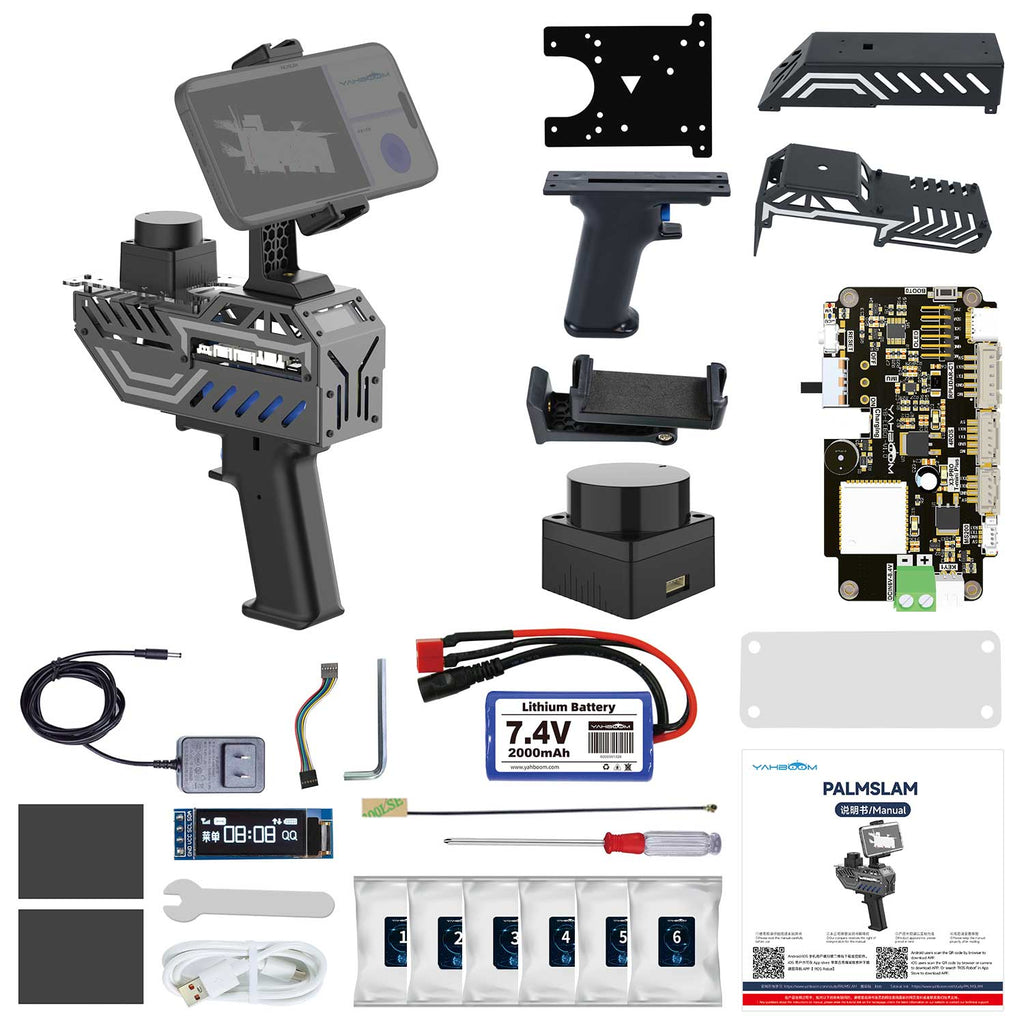

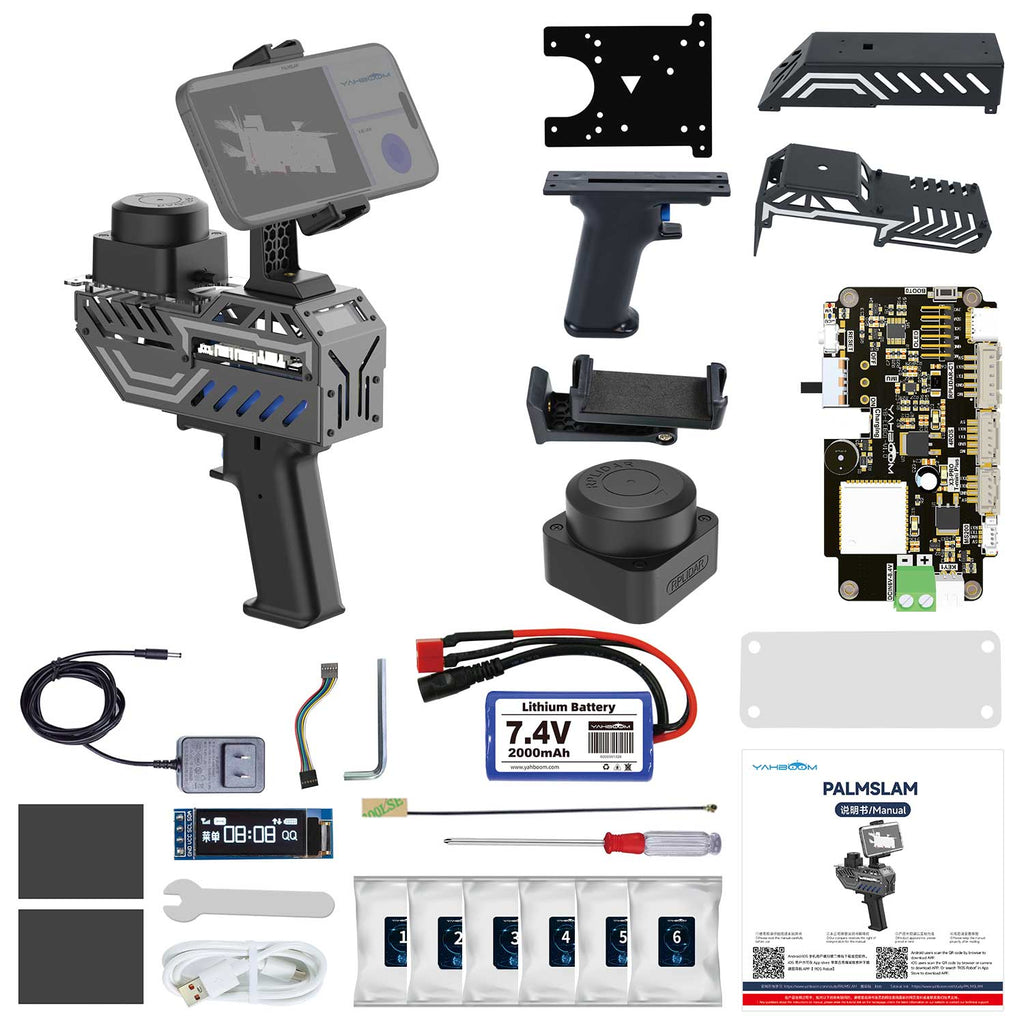

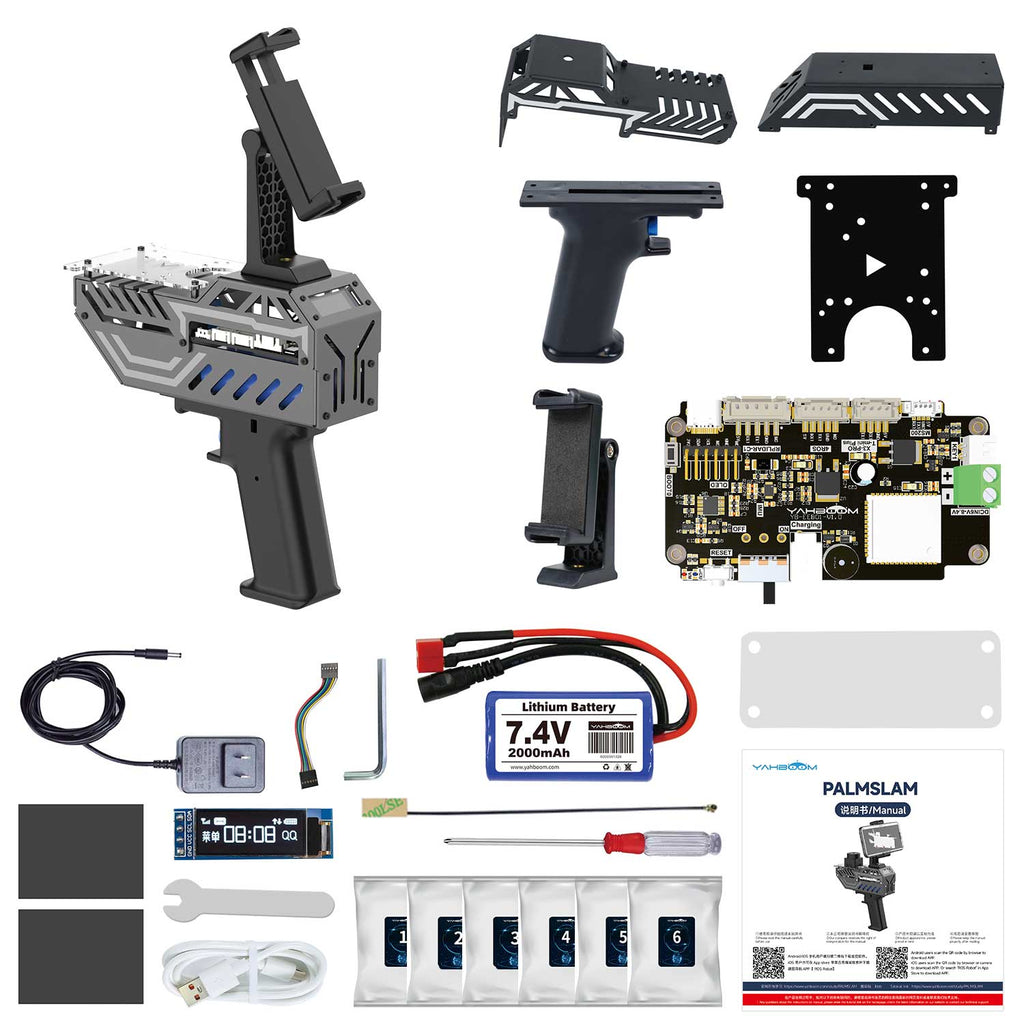

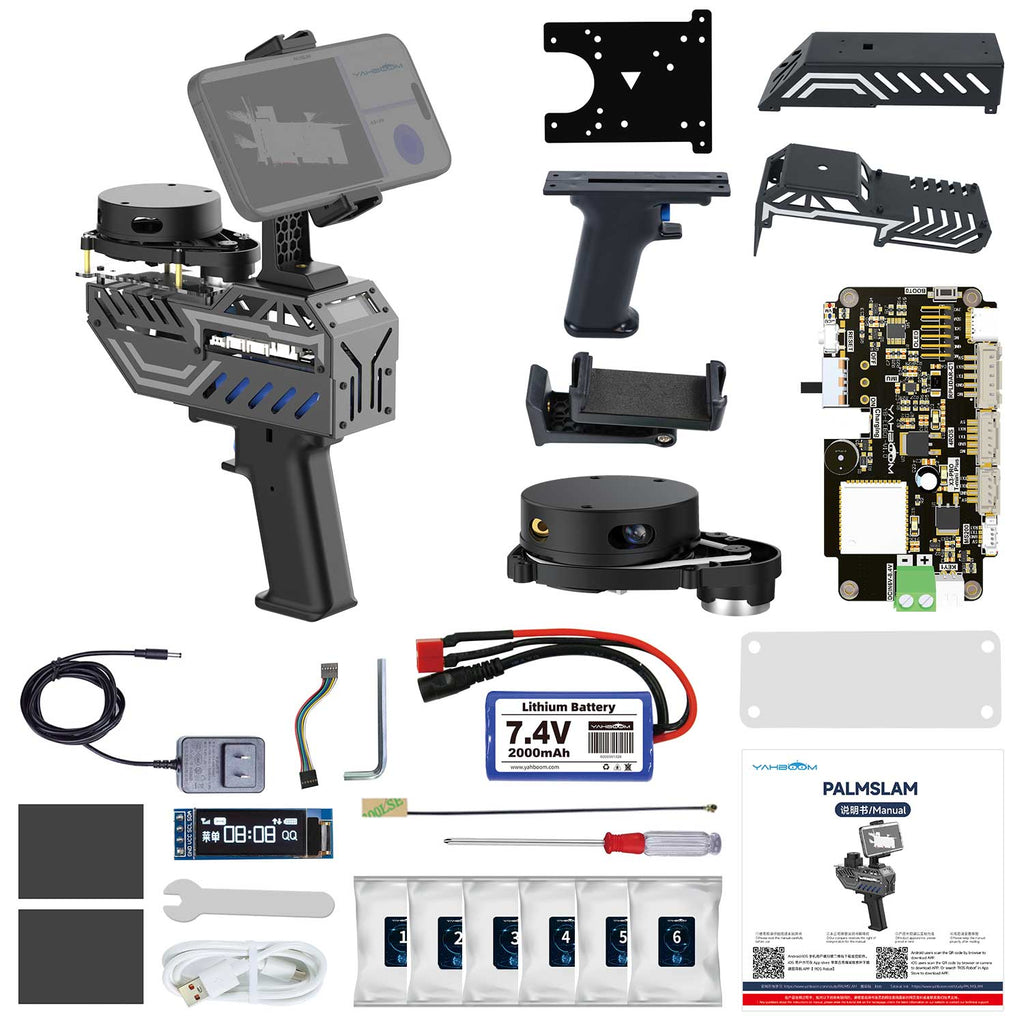

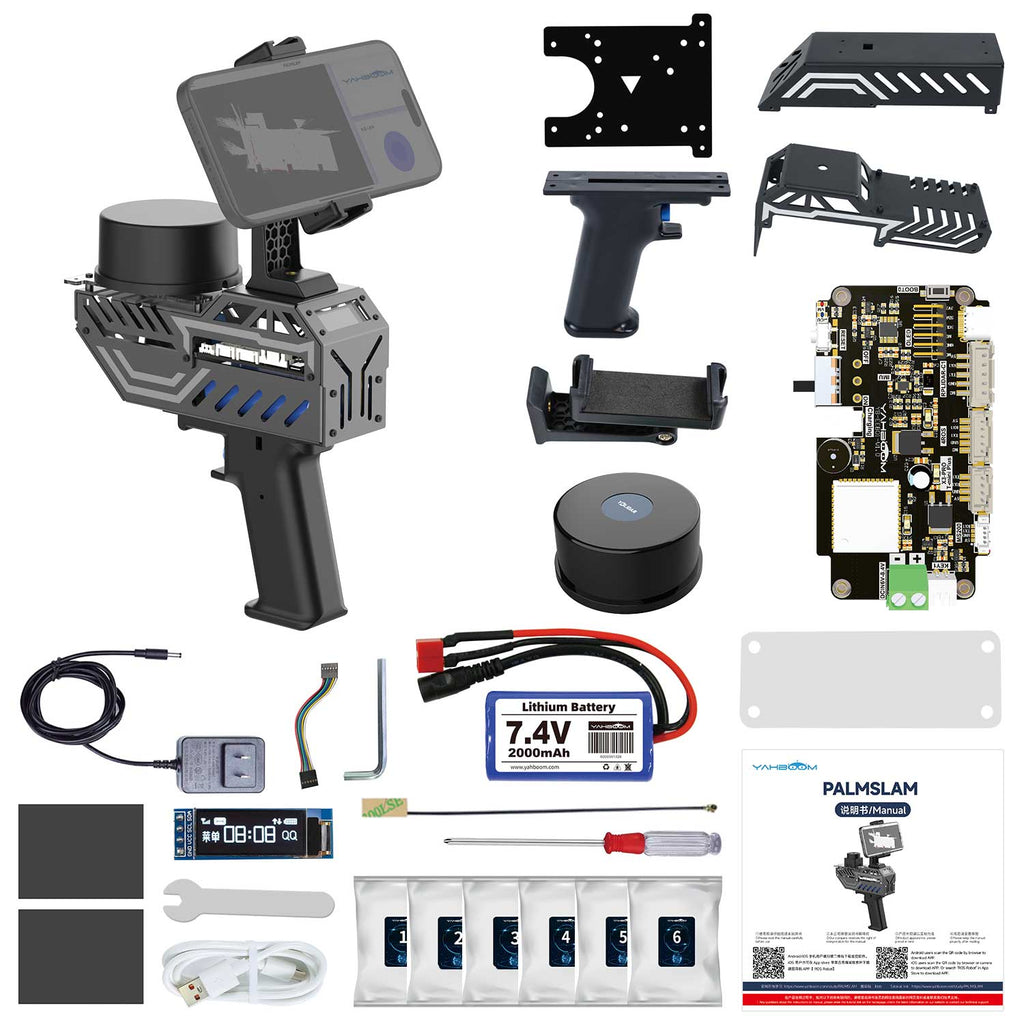

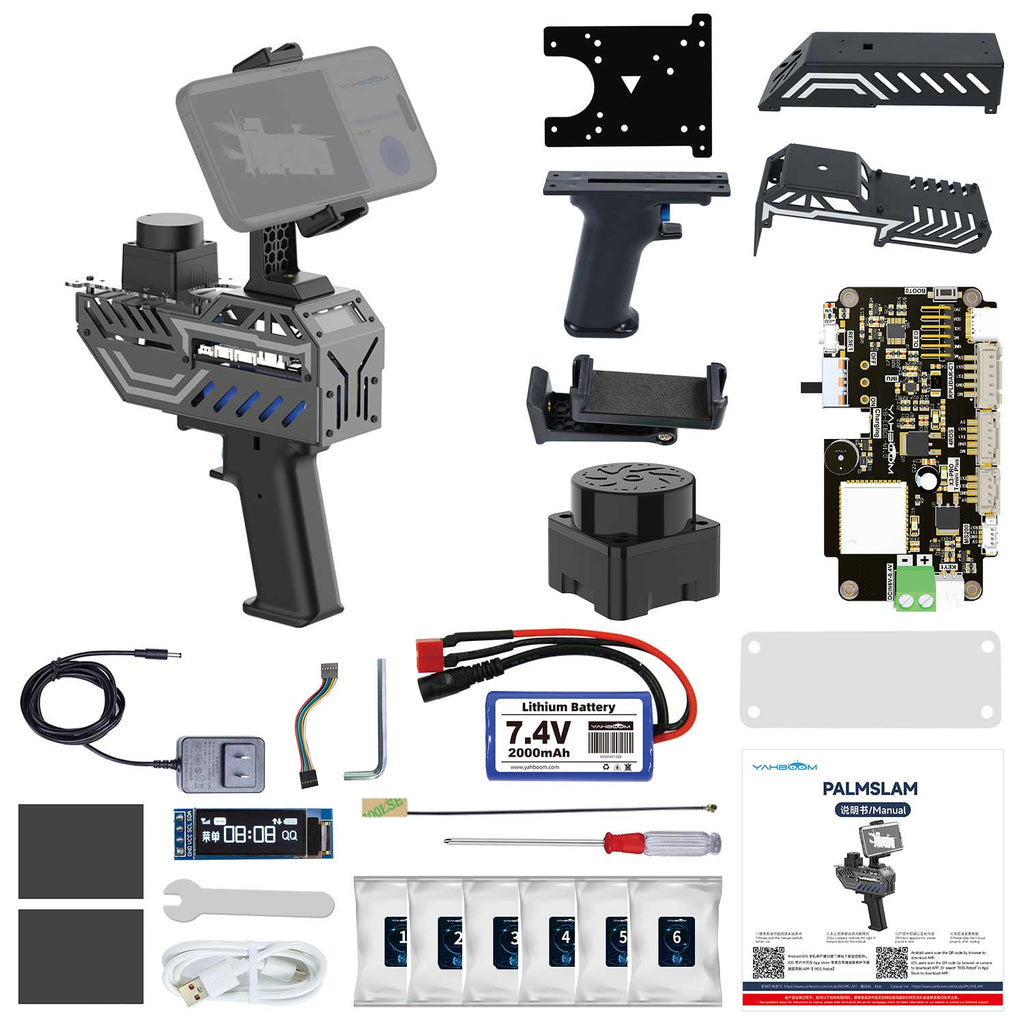

Without lidar, with EAI X3 Pro, with EAI T-mini plus, with SLAM C1, with Oradar MS200, with EAI 4ROS, 6 options for choice. No matter which option you choose, the shipping list includes installation accessories for all lidars.

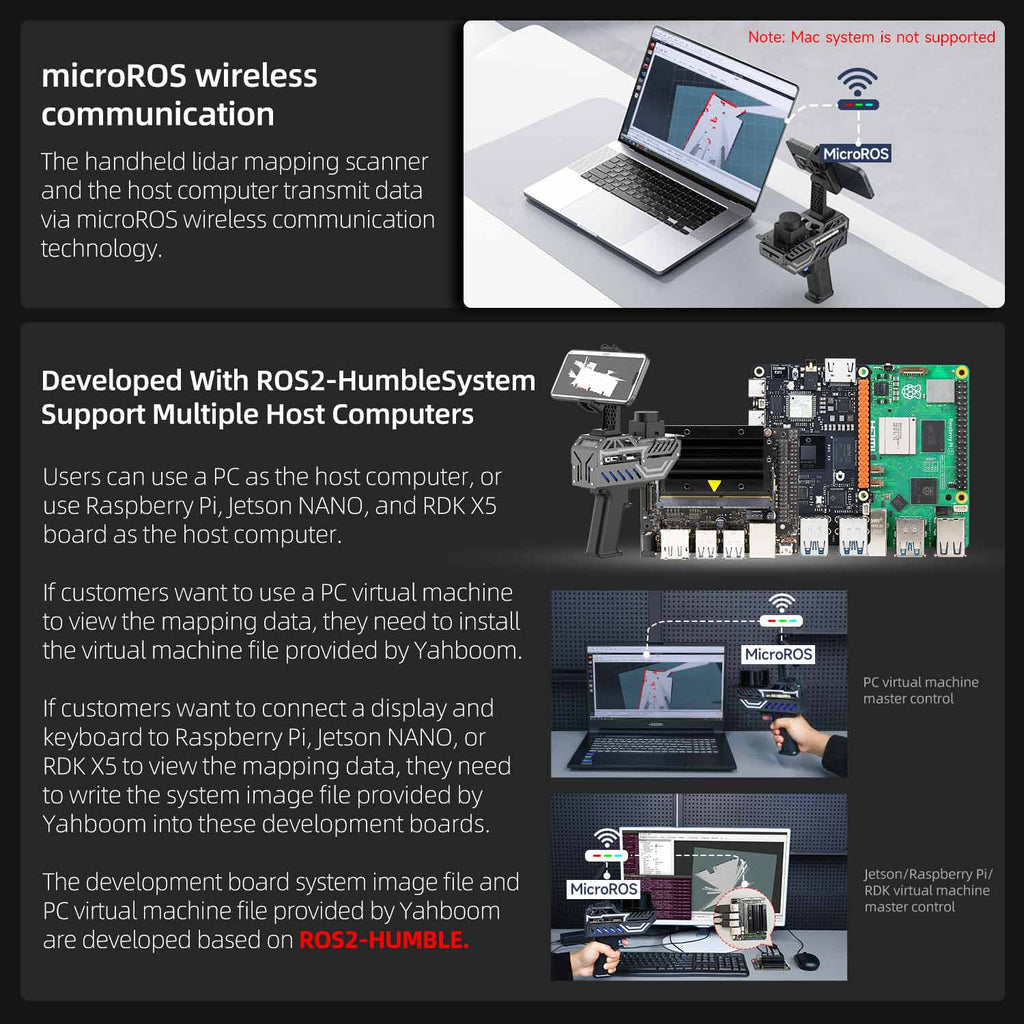

Using MicroROS wireless communication technology:

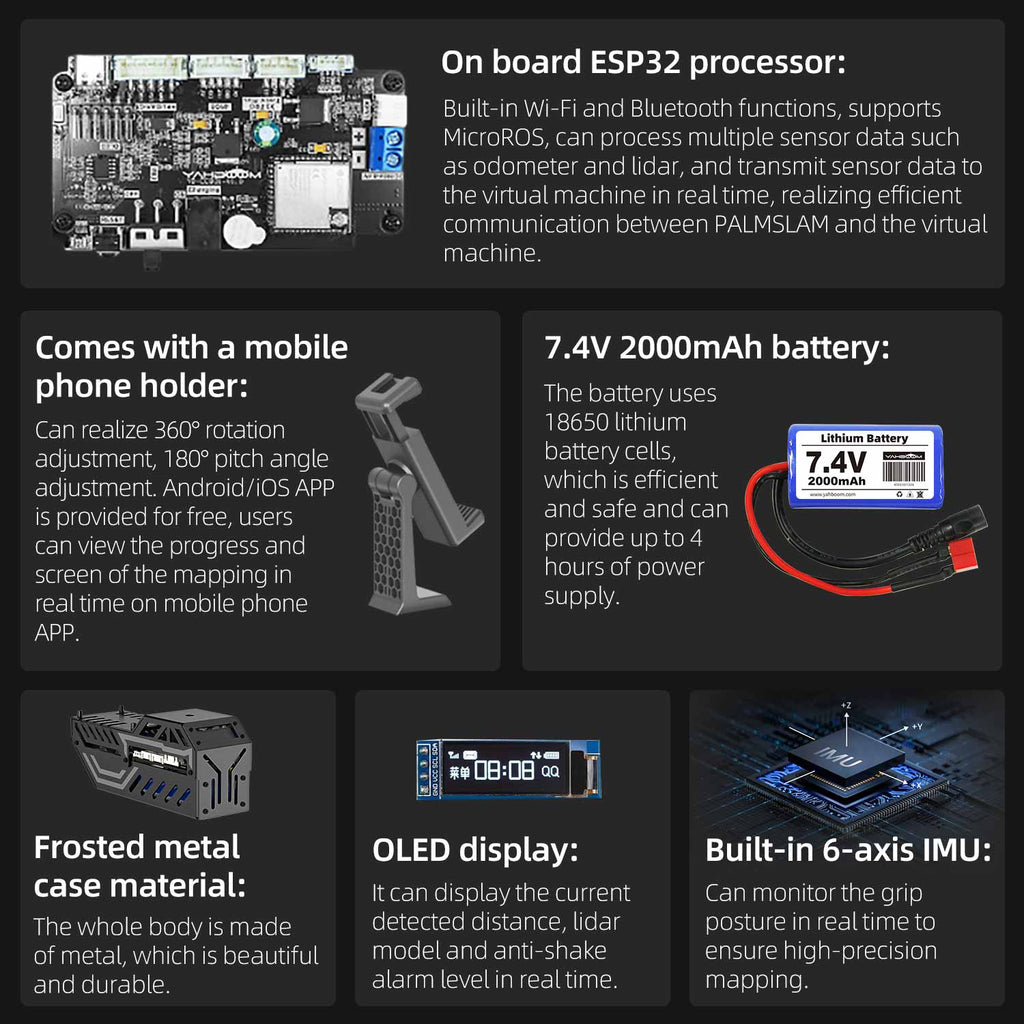

The lidar expansion board with ESP32 processor, and can transmit the lidar data to the host computer (such as: PC virtual machine, Raspberry Pi, Jetson NANO, RDK development board) through MicroROS's WiFi-UDP wireless communication. Yahboom provides complete supporting documentation and corresponding ROS2-HUMBLE system image.
Built-in long-life battery:
Equipped with a 7.4V 2000mah battery pack, the power supply is stable and can be used continuously for 4 hours.

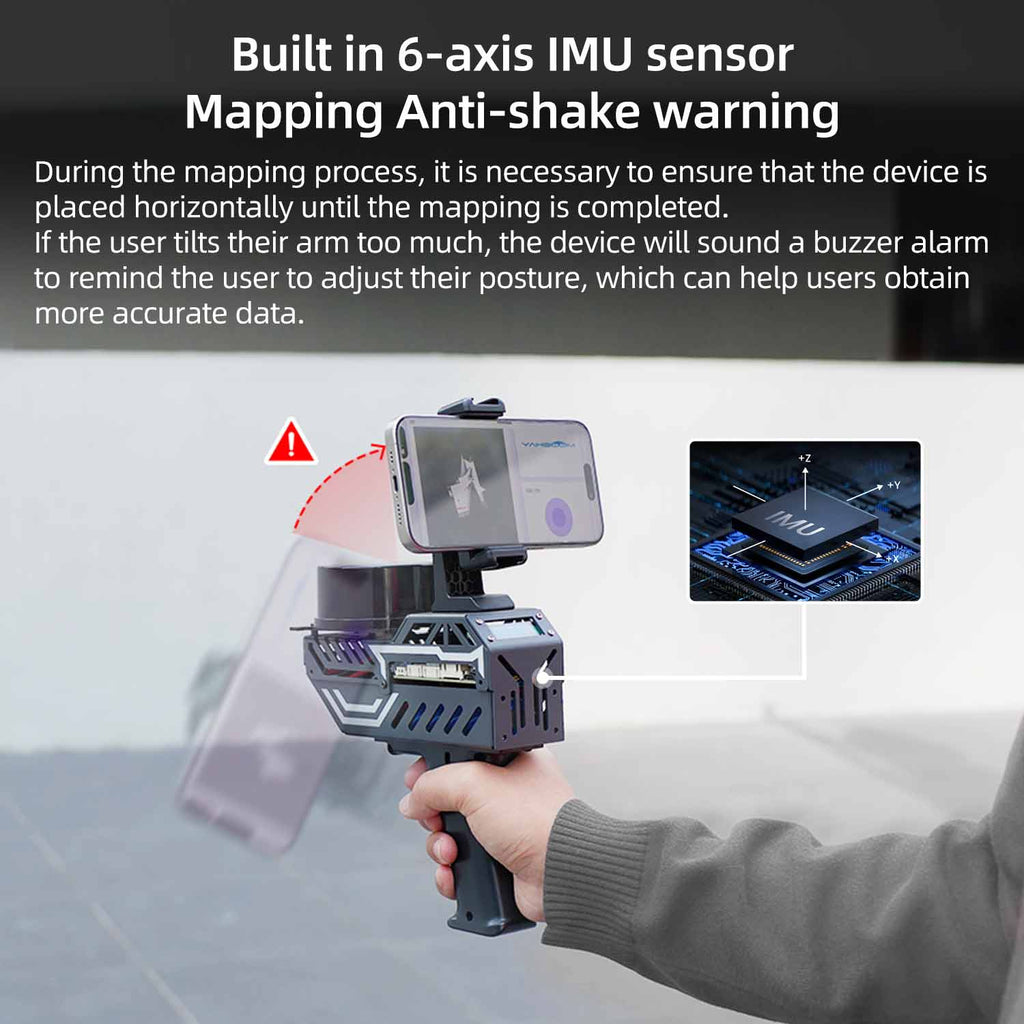

IMU tilt warning/OLED display information:
The lidar expansion board with 6-axis IMU chip. If PALMSLAM tilts during the mapping, there will be a buzzer alarm prompt (the alarm tilt angle can be set by the user). Ensure that PALMSLAM remains level during mapping to obtain more accurate data.
Can installmobile phones/iOS and Android APP:

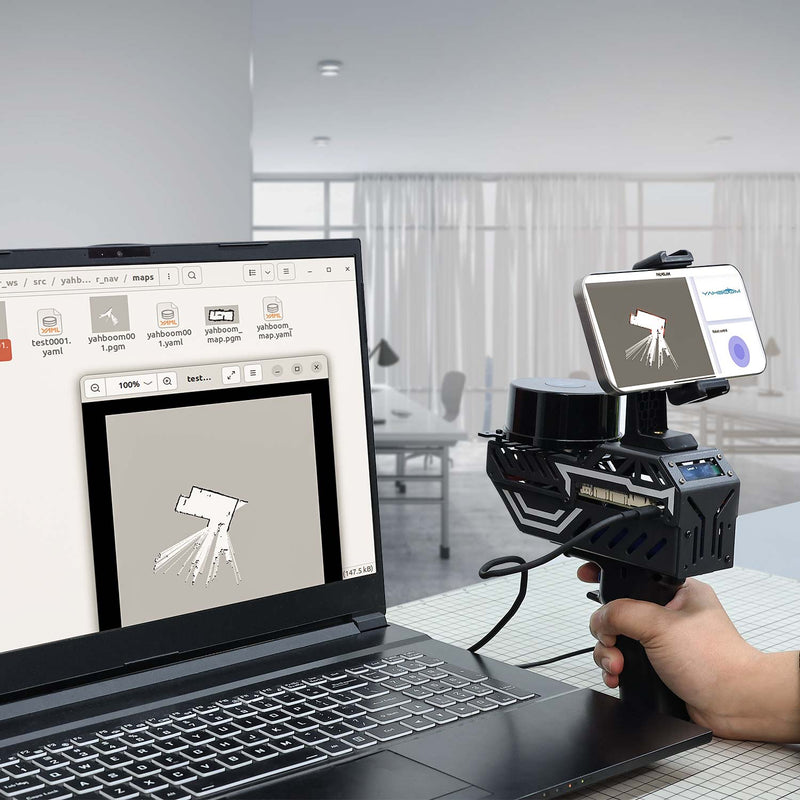

PALMSLAM comes with a rotating mobile phone holder. After installing the mobile phone and APP, users can view the specific situation in real time on the mobile phone APP while mapping.
Shipping & Delivery
Payment & Security
Payment
PayPal
The main Payment method is Paypal. If you have paypal, that is great. You can simply place order and check out with few steps. If you don't have Paypal account, you can register it and pay by Credit or Debit Card.
Pay with Paypal
Pay with Credit or Debit Card
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Customer Reviews
Other than that this is a good evaluation of the lidar scanner, good quality and low price, pistol shape plus you can watch the mapping results in real time, which is really portable and flexible!
The handheld radar is very portable and lightweight I can take it with me, the mapping APP and the beeping warning are very user-friendly designs, they combine with the built-in six-axis IMU calibration to ensure accurate maps
For me it is easy to install , at the same time the handheld design is very convenient, the ranging and tilt warning features make mapping more accurate and convenient, I really like the lidar scanner !!!!👍👍👍
no software available at the documented links. cannot use... the previous reviewer had the same problem apparently...
I enjoyed assembling this device but am disappointed that the software needed is not supplied and is not available without navigating through two different websites. This was not mentioned anywhere on your site. There aren't even any options for a second software option.
QUESTIONS & ANSWERS
-
Can we customize the PALMSLAM by purchasing the LIDAR separately ? I am interested in the RPLIDAR S3 with 40m radius. So, is it possible to configure it in the PALMSLAM Handheld lidar ?
hi, we are sorry that the RPLIDAR S3 (40m radius) is not compatible with the PALMSLAM handheld lidar. We do not recommend purchasing so.
-
EAI 4ROS Lidar Specification... Please ??
Hi,
please kindly check the link for EAI 4ROS Lidar and it shows the details and specfication:
https://category.yahboom.net/collections/a-lidar/products/ydlidar-4ros
hope it helps.
best regards!
-
Hello, I am interested to buy the device. What would be the weight of the packaging and cost labelled in the packaging as we have to clear the customs. Can you let me know. Thank you.
Hello,
Thank you for your patience.
1. This product weighs approximately 1.5 kg and measures 37 x 26 x 13 cm.
2. The declared value on the commercial invoice is no more than US$70 (depending on the shipping address).
Thank you for your understanding.
Looking forward to your reply soon.
