Yahboom MPU6050 3 Axis Acceleration Accelerometer Gyroscope GYRO 6 DOF sensor module

Roll over image to zoom in Click on image to zoom

Yahboom MPU6050 3 Axis Acceleration Accelerometer Gyroscope GYRO 6 DOF sensor module

Name: Yahboom MPU6050 3 Axis Acceleration Accelerometer Gyroscope GYRO 6 DOF sensor module
Brand: yahboom
SKU: 6000300481
Price: 3.3 USD
Availability: InStock

yahboomSKU: 6000300481

Share this product

This three-axis accelerometer gyroscope module adopts high-quality PCB board and good printing process. It uses IIC communication protocol, chip built-in 16bit AD converter, 16bit data output. We give the pin headers to connect the module to the expansion board. (straight and curved, no welding by default, you need to weld by yourself.) It is a necessary part of the balance car.

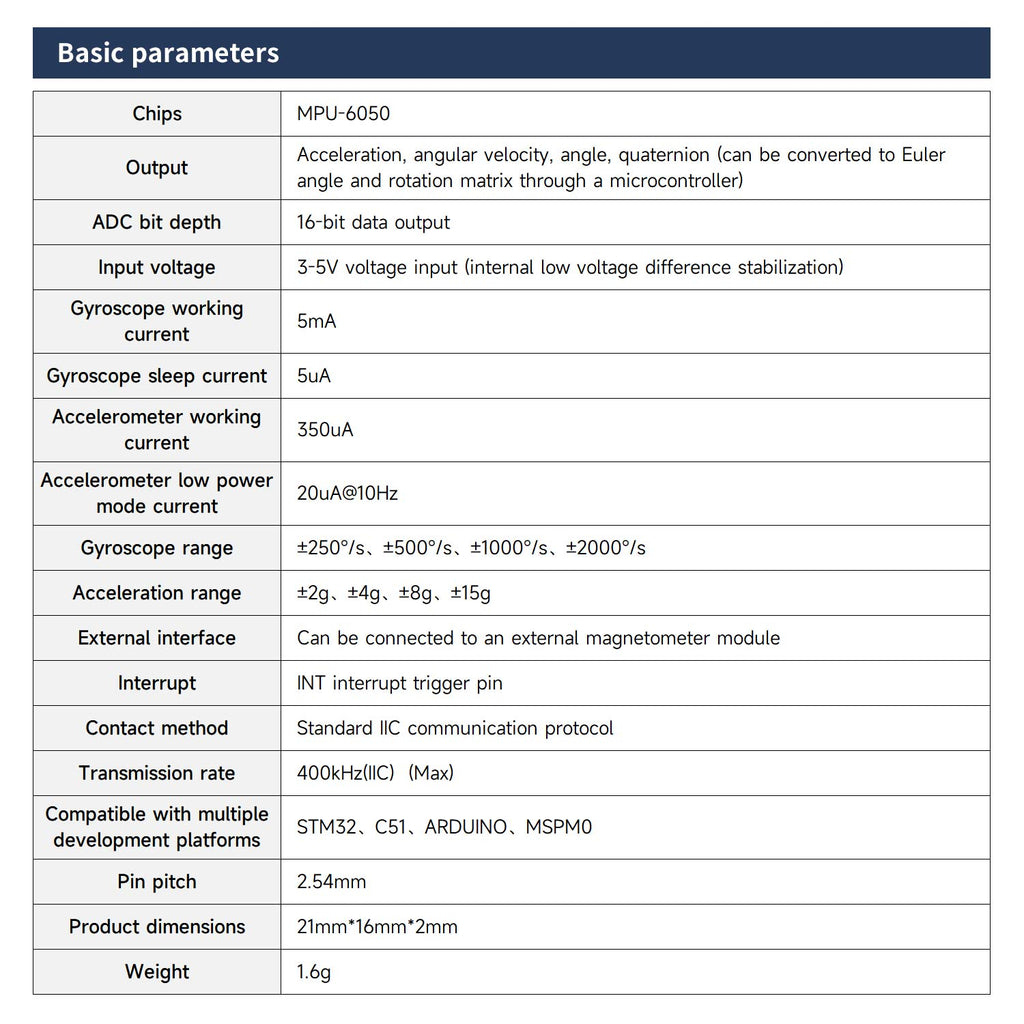

Detail

Chip: MPU-6050

Power supply: 3V-5V power

Communication method: Standard IIC communication agreement

Gyro range: ± 250 500 1000 2000 ° / s

Acceleration range: ± 2 ± 4 ± 8 ± 16 g

Pin pitch: 2.54 mm

Package list

MPU6050 module (Pin headers are not soldered) *1

Straight pin *1

Curved pin header *1

Documents

Yahboom MPU6050 sensor module
