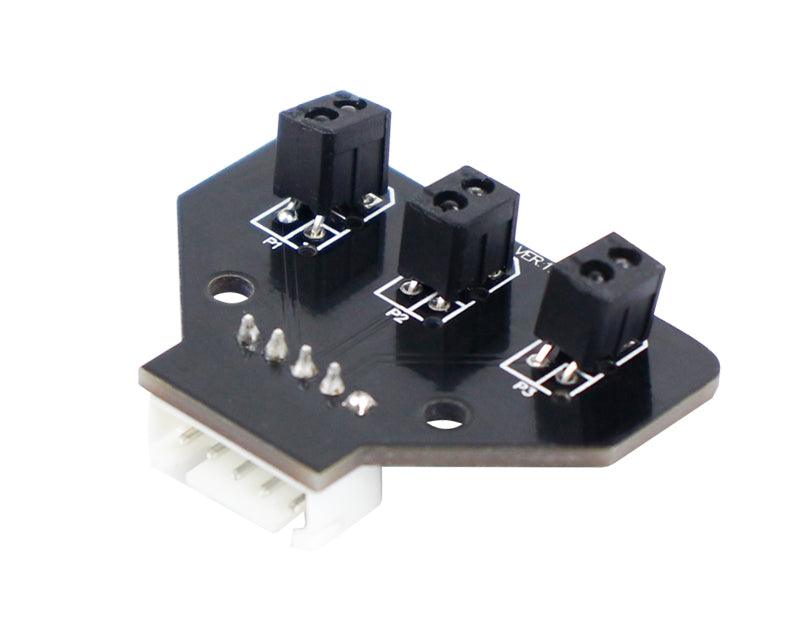

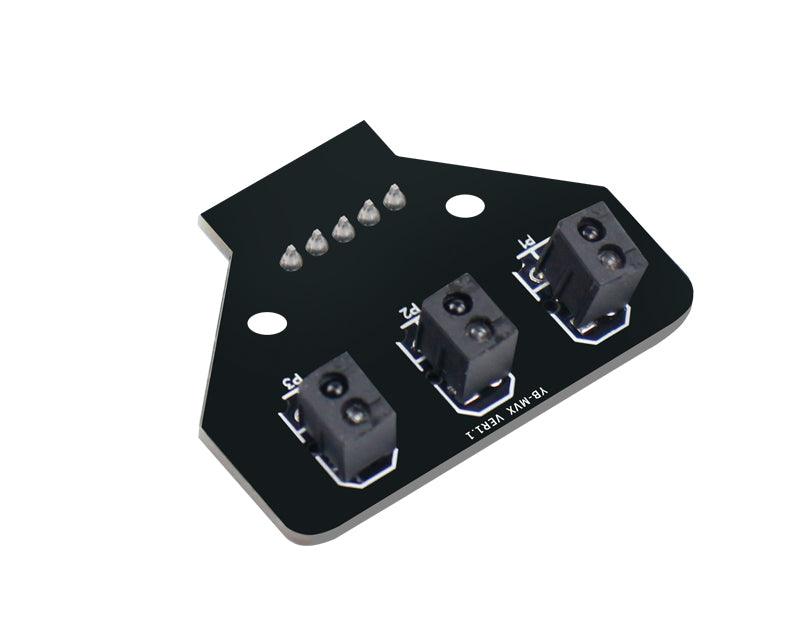

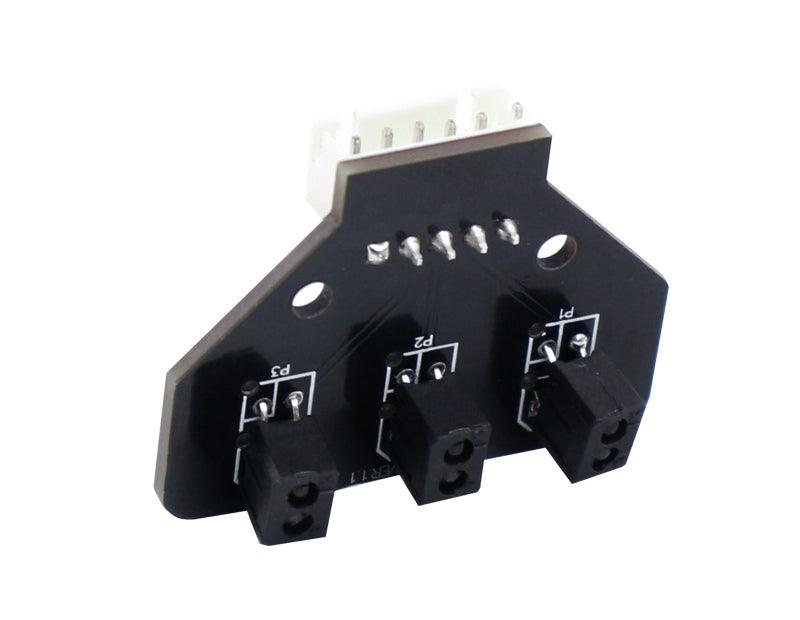

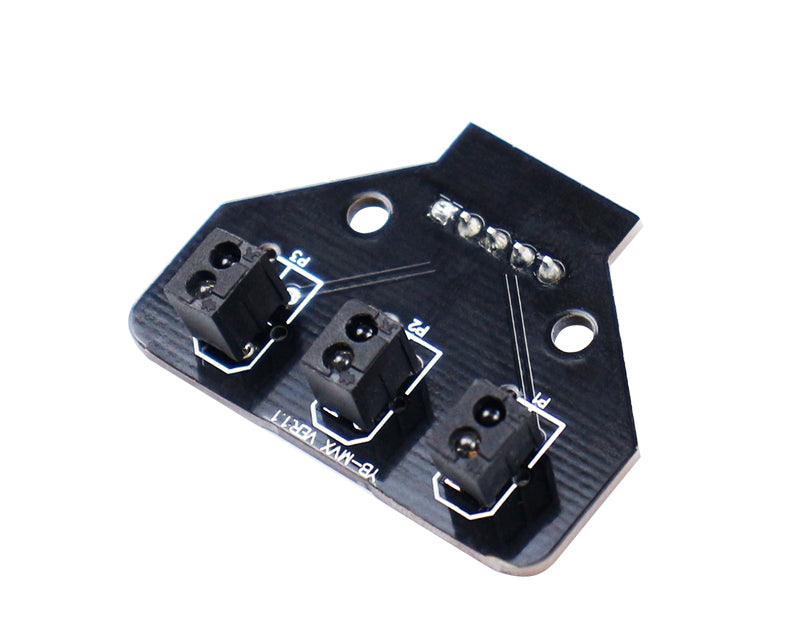

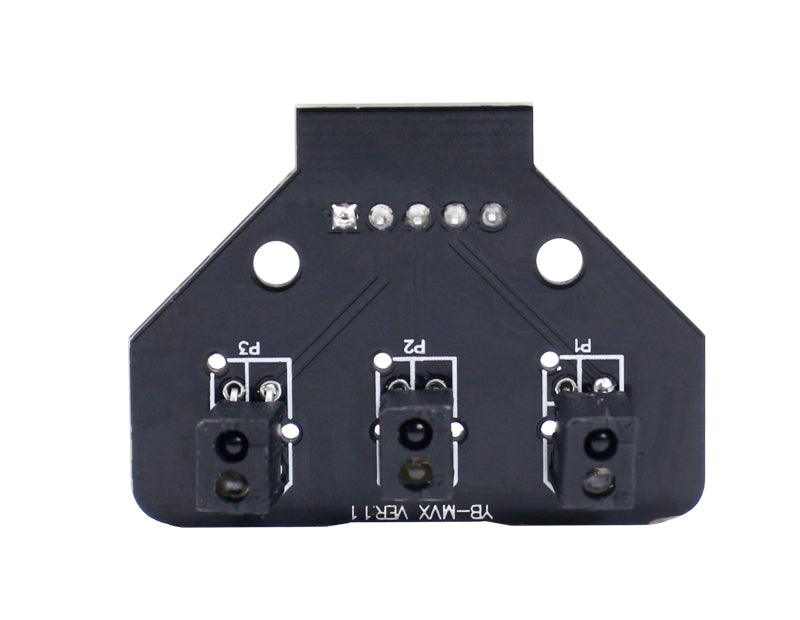

This is a tracking module an output analog value (0~1023). It can adapt to many complex environments, users can adjust the parameters in the program according to the actual situation to modify trigger threshold, which detecting changes in the angle of the curve track. On board 3 channel infrared tracking probe can simultaneously detect the middle track line and detect the left and right edges. We can install it on the smart car with screws and copper or rivets to complete the high-precision tracking.

Feature

• 3 channel analog value output.
• It can adapt to multiple complex environments and achieve high-precision line inspection by adjusting parameters in code.

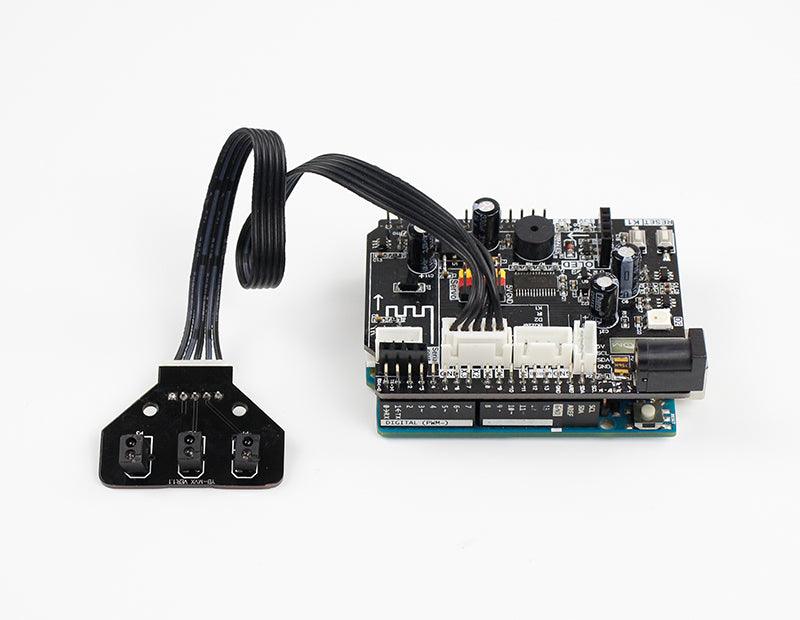

• It support XH2.54 5Pin cable and DuPont line connection.
• It can be fixed on the smart car by rivets or screws and coppers.

Package list

3 channel infrared tracking sensor module *1

Tutorial

Yahboom 3 channel tracking module
